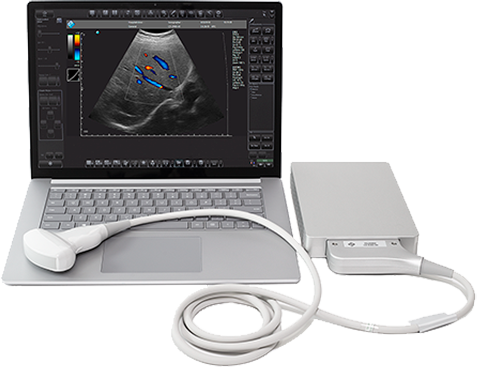

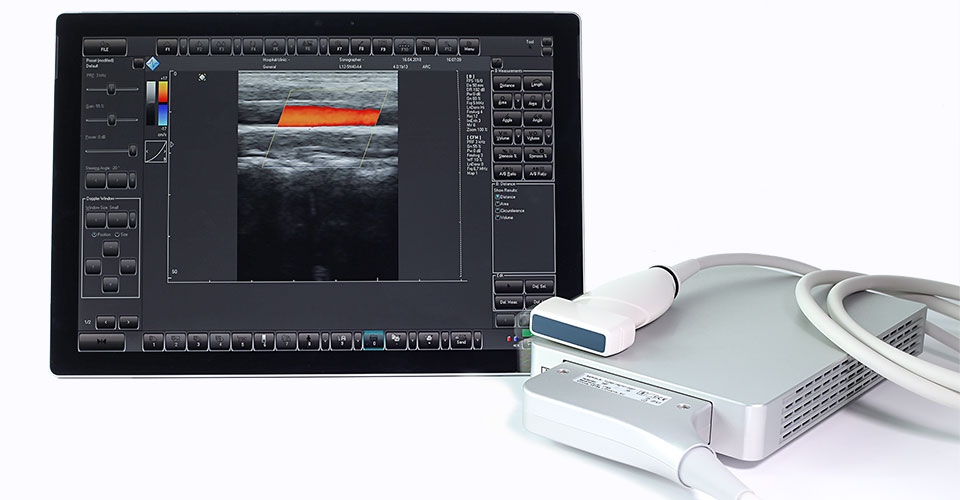

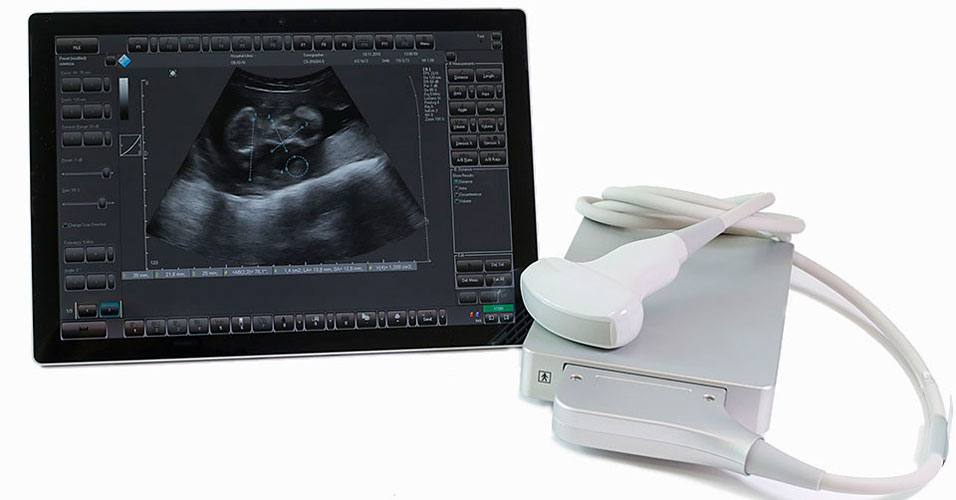

ArtUs is Telemed's very compact and highly powerful application-based ultrasound device. Featured with high-speed USB3.0 interface it allows increase scanning speed without compromising image quality and provides real-time transfer RF ultrasound data to a PC. New "WideView" imaging mode maximizes viewing area for linear, convex and endocavity transducers. Other features includes improved spatial compound available for linear and convex transducers, parallel beamforming, harmonics, B-steer imaging. The system is capable to drive high-density and high-frequency transducers delivering detailed, rich and wide dynamic range images. Software features include Echo Wave II with Speckle noise reduction as a standard package and optional research package: SDK library and advanced data processing and visualisation procedures for MATLAB environment.







ArtUs is available in following modifications:

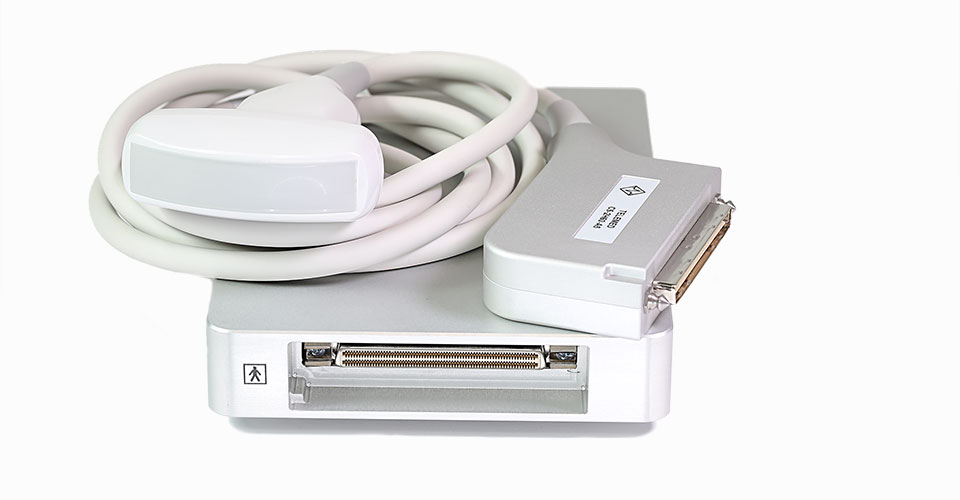

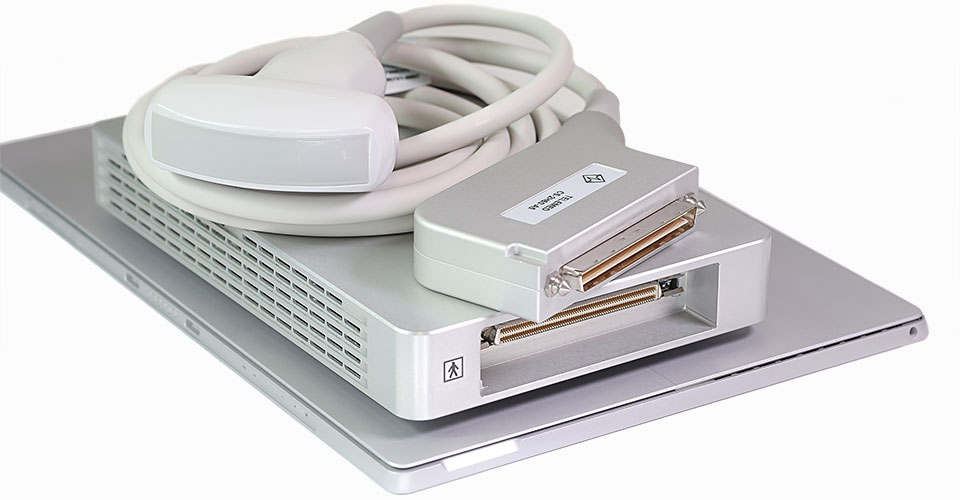

  • ArtUs EXT-1H Kit, a beam former module with a single probe connector and power supply;

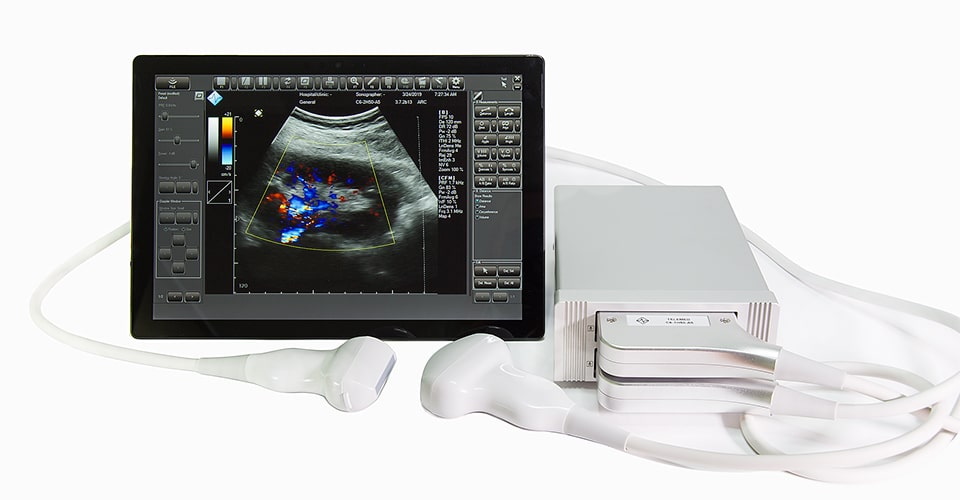

  • ArtUs EXT-2H Kit, a beam former module with two probe connectors and power supply (in development);

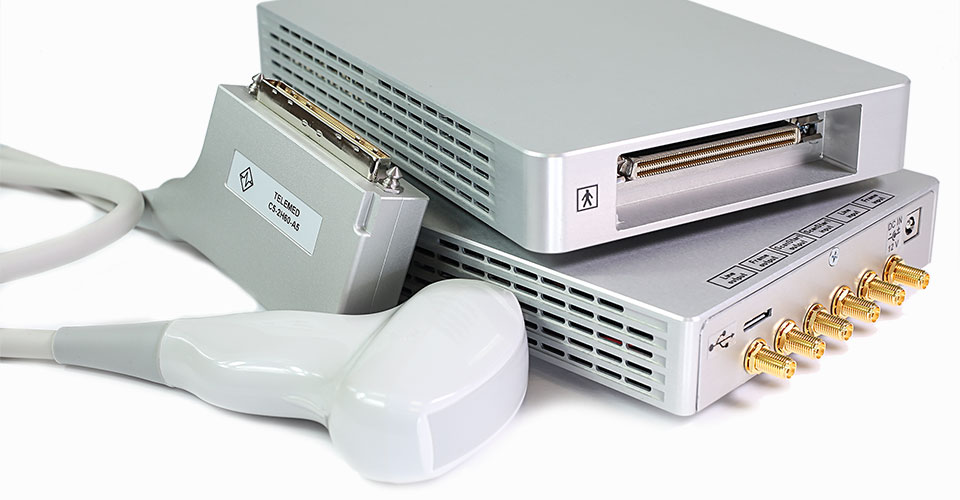

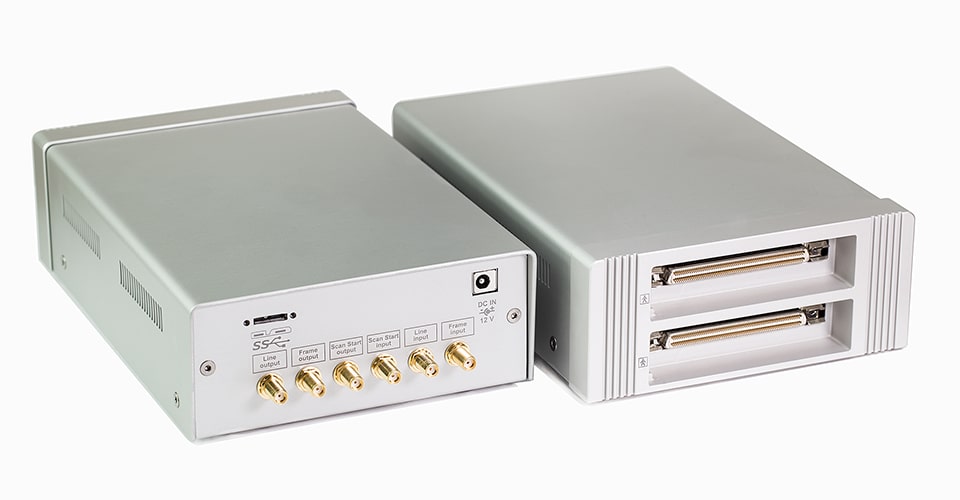

  • I/O module (optional), hardware modification, provides up to 6 trigger signals to/from external equipment through additional connectors;
  • RF module (optional), ArtUs scanner modification, provides access to beamformed RF data via Telemed's SDK and MATLAB utilities

ArtUs EXT-1H/-2H Kit includes:

  • ArtUs EXT-1H or ArtUs EXT-2H beamformer
  • ultrasound transducer (optional)
  • Micro-B to Type-A USB 3.0 cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • AC power cable
  • software, assembly and set-up manual, operation manual (supplied on USB memory stick)
  • I/O module (optional)
  • RF module (optional)

Detailed system specifications and comparison with other systems see here

C6-1H50-A5
Frequency: 1-6 MHz
Radius: 50mm
Use: abdominal, obstetrics, paediatrics

C5-2H60-A5
Frequency: 2-5 MHz
Radius: 60mm
Use: abdominal, obstetrics, paediatrics

L12-5N40-A4
Frequency: 5-12 MHz
Length 40mm
Use: paediatrics, small parts, vascular, veterinary

L18-7H30-A5
Frequency: 7-18 MHz
Length: 30mm
Use: paediatrics, small parts, vascular

L15-7H40-A5
Frequency: 7-15 MHz
Length 40mm
Use: paediatrics, small parts, vascular, veterinary

P5-1S15-A6
Frequency: 1-5 Mhz
Use: cardiac, abdominal

Compatible Transducers

MCV9-5N10-A3
Frequency: 5-9 MHz
Radius: 10mm
Use: transrectal, transvaginal
